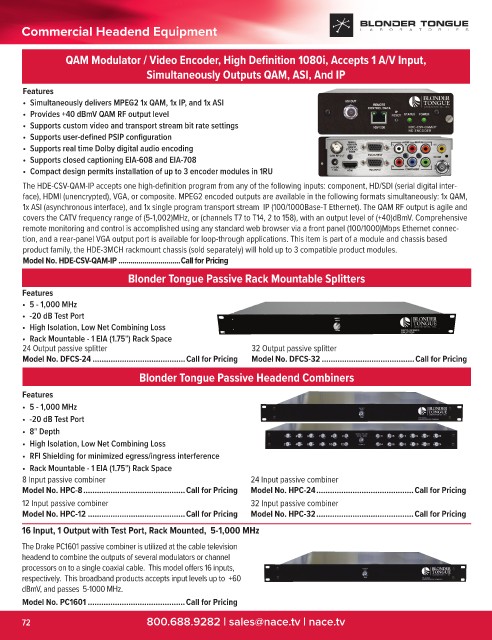

P. 74
Commercial Headend Equipment
QAM Modulator / Video Encoder, High Definition 1080i, Accepts 1 A/V Input,
Simultaneously Outputs QAM, ASI, And IP
Features
• Simultaneously delivers MPEG2 1x QAM, 1x IP, and 1x ASI
• Provides +40 dBmV QAM RF output level
• Supports custom video and transport stream bit rate settings
• Supports user-defined PSIP configuration
• Supports real time Dolby digital audio encoding
• Supports closed captioning EIA-608 and EIA-708
• Compact design permits installation of up to 3 encoder modules in 1RU
The HDE-CSV-QAM-IP accepts one high-definition program from any of the following inputs: component, HD/SDI (serial digital inter-
face), HDMI (unencrypted), VGA, or composite. MPEG2 encoded outputs are available in the following formats simultaneously: 1x QAM,
1x ASI (asynchronous interface), and 1x single program transport stream IP (100/1000Base-T Ethernet). The QAM RF output is agile and
covers the CATV frequency range of (5-1,002)MHz, or (channels T7 to T14, 2 to 158), with an output level of (+40)dBmV. Comprehensive
remote monitoring and control is accomplished using any standard web browser via a front panel (100/1000)Mbps Ethernet connec-
tion, and a rear-panel VGA output port is available for loop-through applications. This item is part of a module and chassis based
product family, the HDE-3MCH rackmount chassis (sold separately) will hold up to 3 compatible product modules.
Model No. HDE-CSV-QAM-IP ...............................Call for Pricing
Blonder Tongue Passive Rack Mountable Splitters
Features
• 5 - 1,000 MHz
• -20 dB Test Port
• High Isolation, Low Net Combining Loss
• Rack Mountable - 1 EIA (1.75") Rack Space
24 Output passive splitter 32 Output passive splitter
Model No. DFCS-24 .........................................Call for Pricing Model No. DFCS-32 .........................................Call for Pricing
Blonder Tongue Passive Headend Combiners
Features
• 5 - 1,000 MHz
• -20 dB Test Port
• 8" Depth
• High Isolation, Low Net Combining Loss
• RFI Shielding for minimized egress/ingress interference
• Rack Mountable - 1 EIA (1.75") Rack Space
8 Input passive combiner 24 Input passive combiner
Model No. HPC-8 .............................................Call for Pricing Model No. HPC-24 ...........................................Call for Pricing
12 Input passive combiner 32 Input passive combiner
Model No. HPC-12 ...........................................Call for Pricing Model No. HPC-32 ...........................................Call for Pricing
16 Input, 1 Output with Test Port, Rack Mounted, 5-1,000 MHz
The Drake PC1601 passive combiner is utilized at the cable television
headend to combine the outputs of several modulators or channel
processors on to a single coaxial cable. This model offers 16 inputs,
respectively. This broadband products accepts input levels up to +60
dBmV, and passes 5-1000 MHz.
Model No. PC1601 ...........................................Call for Pricing
